This article will consist of the following sections:

  • A Project Summary

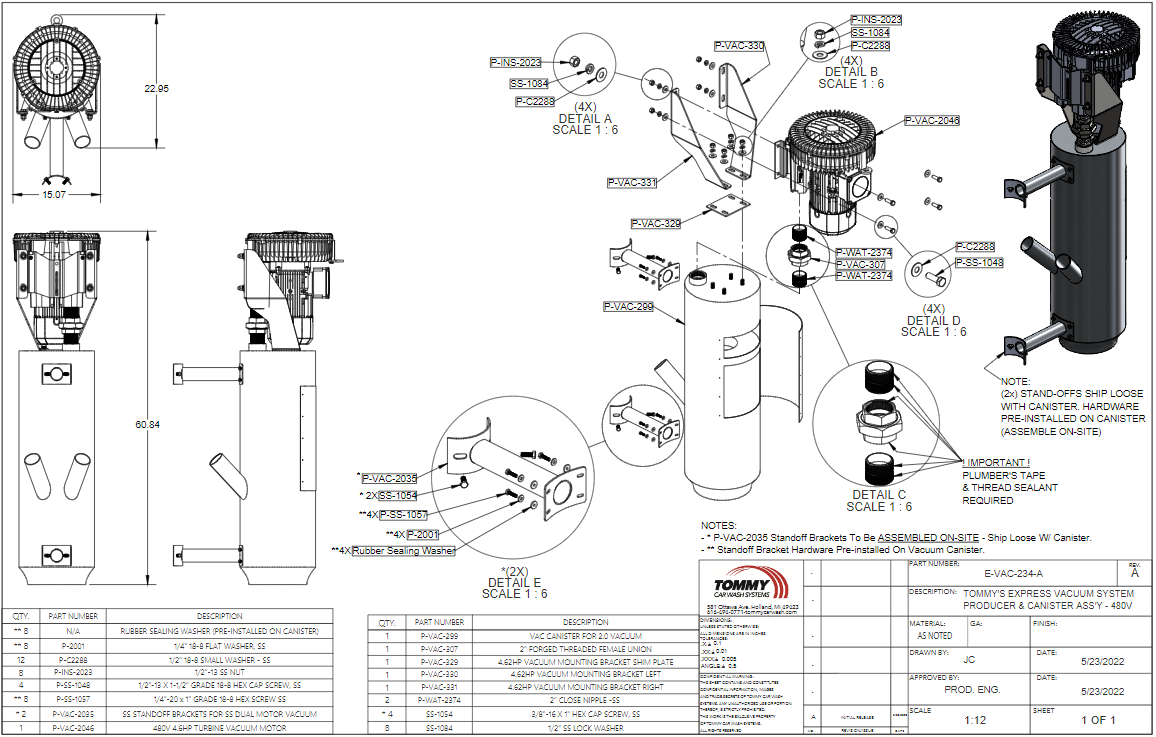

  • An Isometric Drawing
  • A Bill Of Materials

This article will include links to the Release Summary, an Isometric Breakdown that includes the Bill Of Materials. Please see the bottom if you would like to download these files.



Project Summary

The vacuum 2.0 will now be partially assembled by production, saving space on truck loads, installation and installation time on site. You can order this assembly by ordering E-VAC-235-A.



Separate parts can be located in the Bill of Materials below and available for download by downloading the isometric drawing.








ISO Breakdown

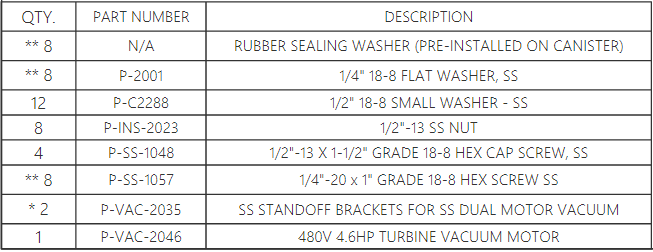

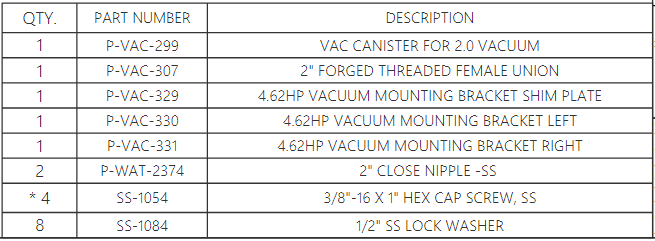

Bill Of Materials
