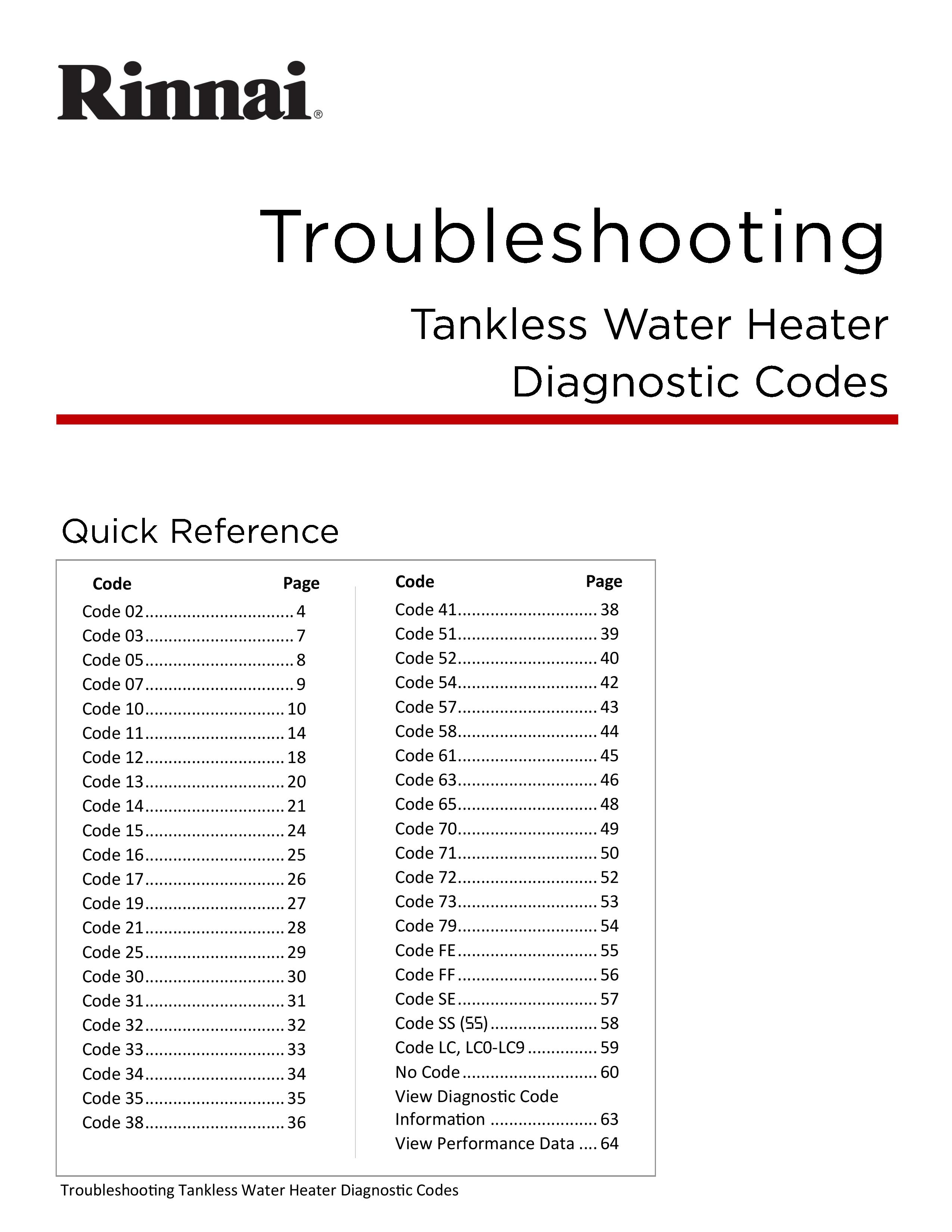

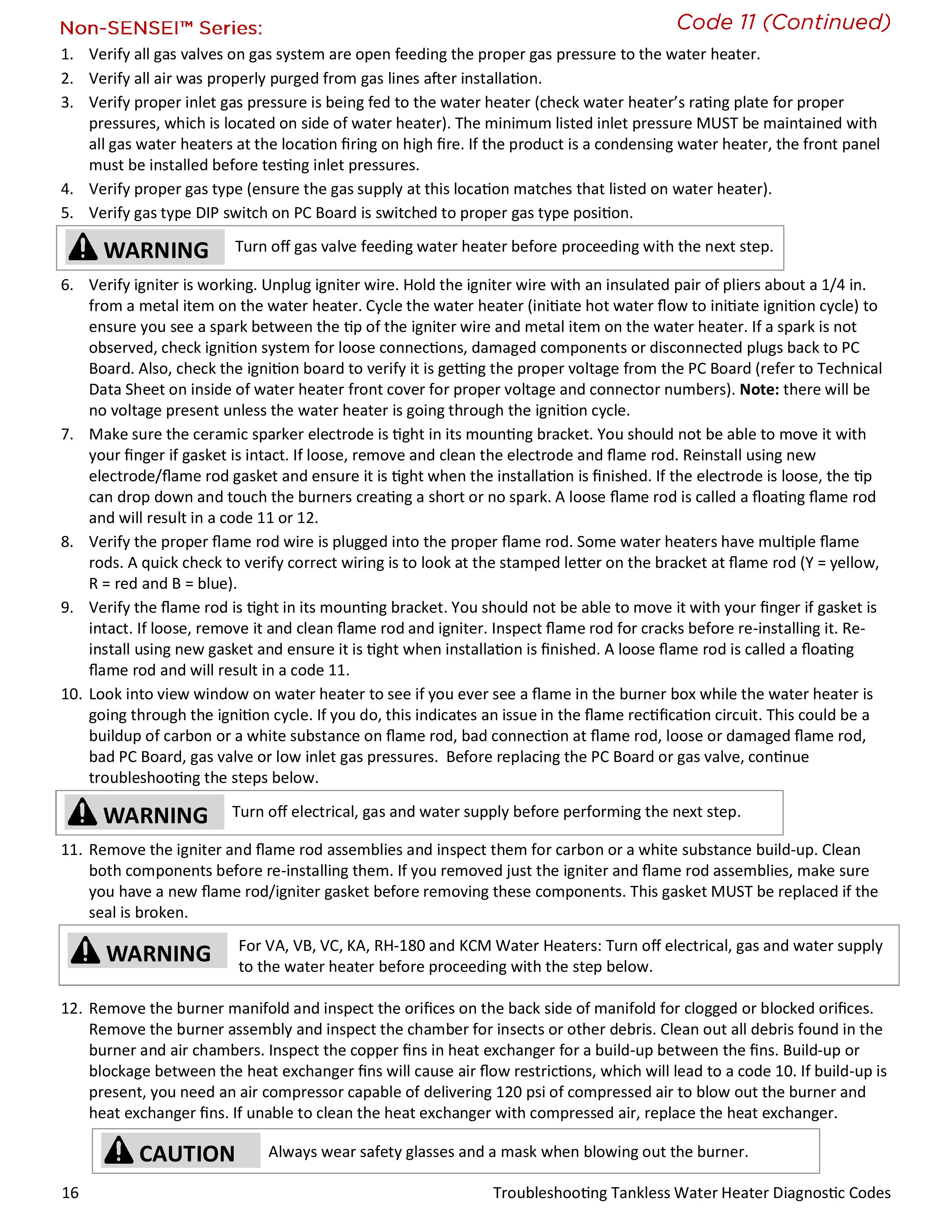

Troubleshooting: Rinnai Water Heater




























































100000652-Troubleshooting TWH Diagnostic Codes.pdf
3 MB Download
