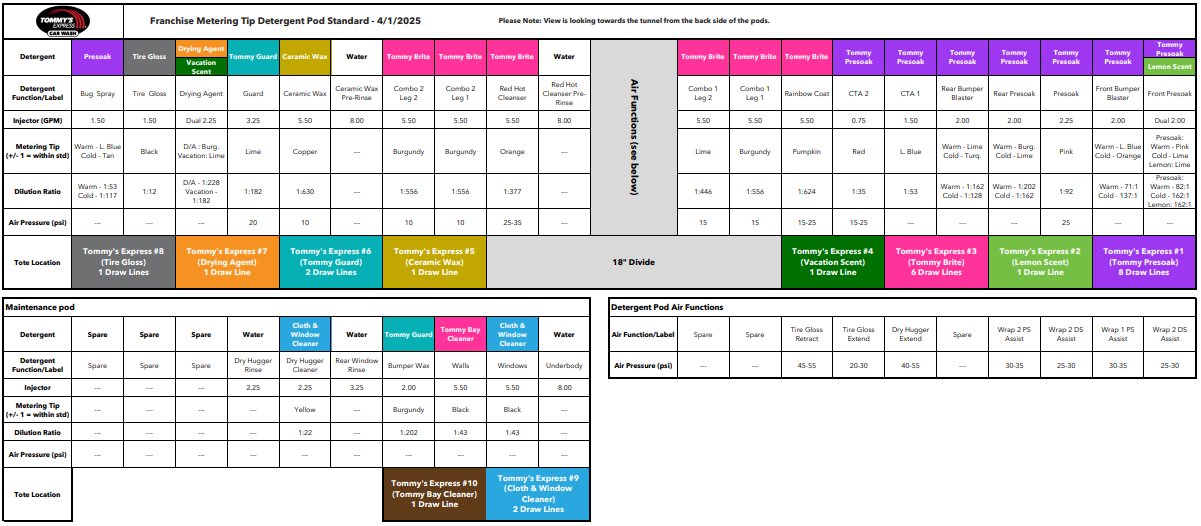

| Franchise Metering Tip Detergent Pod Standard - 4/1/2025 | Please Note: View is looking towards the tunnel from the back side of the pods. | |||||||||||||||||||||
| Detergent | Presoak | Tire Gloss | Drying Agent | Tommy Guard | Ceramic Wax | Water | Tommy Brite | Tommy Brite | Tommy Brite | Water | Air Functions (see below) | Tommy Brite | Tommy Brite | Tommy Brite | Tommy Presoak | Tommy Presoak | Tommy Presoak | Tommy Presoak | Tommy Presoak | Tommy Presoak | Tommy Presoak | |
| Vacation Scent | Lemon Scent | |||||||||||||||||||||
| Detergent Function/Label | Bug Spray | Tire Gloss | Drying Agent | Guard | Ceramic Wax | Ceramic Wax Pre-Rinse | Combo 2 Leg 2 |
Combo 2 Leg 1 |
Red Hot Cleanser | Red Hot Cleanser Pre-Rinse | Combo 1 Leg 2 |
Combo 1 Leg 1 |
Rainbow Coat | CTA 2 | CTA 1 | Rear Bumper Blaster | Rear Presoak | Presoak | Front Bumper Blaster | Front Presoak | ||
| Injector (GPM) | 1.50 | 1.50 | Dual 2.25 | 3.25 | 5.50 | 8.00 | 5.50 | 5.50 | 5.50 | 8.00 | 5.50 | 5.50 | 5.50 | 0.75 | 1.50 | 2.00 | 2.00 | 2.25 | 2.00 | Dual 2.00 | ||
| Metering Tip (+/- 1 = within std) |
Warm - L. Blue Cold - Tan |
Black | D/A : Burg. Vacation: Lime |
Lime | Copper | --- | Burgundy | Burgundy | Orange | --- | Lime | Burgundy | Pumpkin | Red | L. Blue | Warm - Lime Cold - Turq. |
Warm - Burg. Cold - Lime |
Pink | Warm - L. Blue Cold - Orange |
Presoak: Warm - Pink Cold - Lime Lemon: Lime |
||
| Dilution Ratio | Warm - 1:53 Cold - 1:117 |
1:12 | D/A - 1:228 Vacation - 1:182 |
1:182 | 1:630 | --- | 1:556 | 1:556 | 1:377 | --- | 1:446 | 1:556 | 1:624 | 1:35 | 1:53 | Warm - 1:162 Cold - 1:128 |
Warm - 1:202 Cold - 1:162 |
1:92 | Warm - 71:1 Cold - 137:1 |
Presoak: Warm - 82:1 Cold - 162:1 Lemon: 162:1 |
||
| Air Pressure (psi) | --- | --- | --- | 20 | 10 | --- | 10 | 10 | 25-35 | --- | 15 | 15 | 15-25 | 15-25 | --- | --- | --- | 25 | --- | --- | ||
| Tote Location | Tommy's Express #8 (Tire Gloss) 1 Draw Lines |
Tommy's Express #7 (Drying Agent) 1 Draw Line |
Tommy's Express #6 (Tommy Guard) 2 Draw Lines |
Tommy's Express #5 (Ceramic Wax) 1 Draw Line |
18" Divide | Tommy's Express #4 (Vacation Scent) 1 Draw Line |
Tommy's Express #3 (Tommy Brite) 6 Draw Lines |
Tommy's Express #2 (Lemon Scent) 1 Draw Line |
Tommy's Express #1 (Tommy Presoak) 8 Draw Lines |
|||||||||||||
| Maintenance pod | Detergent Pod Air Functions | |||||||||||||||||||||
| Detergent | Spare | Spare | Spare | Water | Cloth & Window Cleaner | Water | Tommy Guard | Tommy Bay Cleaner | Cloth & Window Cleaner | Water | Air Function/Label | Spare | Spare | Tire Gloss Retract | Tire Gloss Extend | Dry Hugger Extend | Spare | Wrap 2 PS Assist | Wrap 2 DS Assist | Wrap 1 PS Assist | Wrap 2 DS Assist | |
| Detergent Function/Label | Spare | Spare | Spare | Dry Hugger Rinse | Dry Hugger Cleaner | Rear Window Rinse | Bumper Wax | Walls | Windows | Underbody | Air Pressure (psi) | --- | --- | 45-55 | 20-30 | 40-55 | --- | 30-35 | 25-30 | 30-35 | 25-30 | |
| Injector | --- | --- | --- | 2.25 | 2.25 | 3.25 | 2.00 | 5.50 | 5.50 | 8.00 | ||||||||||||
| Metering Tip (+/- 1 = within std) |
--- | --- | --- | --- | Yellow | --- | Burgundy | Black | Black | --- | ||||||||||||
| Dilution Ratio | --- | --- | --- | --- | 1:22 | --- | 1:202 | 1:43 | 1:43 | --- | ||||||||||||
| Air Pressure (psi) | --- | --- | --- | --- | --- | --- | --- | --- | --- | --- | ||||||||||||
| Tote Location | Tommy's Express #10 (Tommy Bay Cleaner) 1 Draw Line |
Tommy's Express #9 (Cloth & Window Cleaner) 2 Draw Lines |
||||||||||||||||||||
